The TSH110 is a low noise, low supply current, high output current, bandwidth of 100MHz, supply voltage of 5V to 12V, slew rate of 450V/µs, specified for 100Ω load, very low distortion, tiny SOT23-5, TSSOP and SO packages operational amplifier.

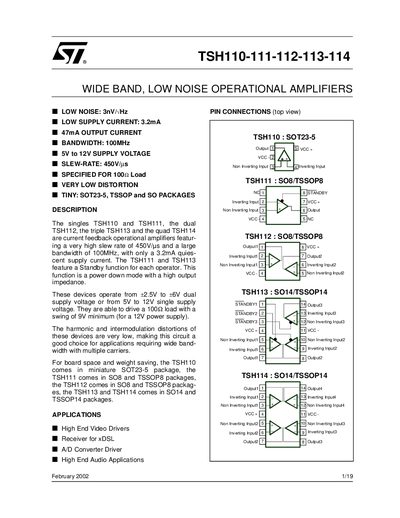

The TSH110‑111‑112‑113‑114 family are current‑feedback operational amplifiers offering a very high slew rate of 450 V/µs, a 100 MHz bandwidth, and low supply current. Variants are available as single (TSH110), dual (TSH112), triple (TSH113) and quad (TSH114) devices in SOT23‑5, SO8, TSSOP8, SO14 and TSSOP14 packages. They operate from +2.5 V to +6 V dual supply or 5 V to 12 V single supply and can drive a 100 Ω load with a minimum 9 V swing.
The document lists absolute maximum ratings, operating conditions, electrical characteristics (DC performance, noise, harmonic distortion, matching), standby mode behavior, and detailed mechanical dimensions for each package. Typical applications include high‑end video drivers, xDSL receivers, A/D converter drivers, and high‑end audio circuits.
| Low Noise | 3 nV/√Hz |
|---|---|
| Slew Rate | 450 V/µs |
| Bandwidth | 100 MHz |
| Supply Current per Operator | 3.2 mA |
| Output Current | 47 mA |
| Supply Voltage Range | 5 V to 12 V |
| Maximum Supply Voltage (absolute rating) | 14 V |
The standby function provides a power‑down mode with a high output impedance for each operator.
The TSH110 is offered in a miniature SOT23‑5 package.
The absolute maximum supply voltage is 14 V.
Typical supply current per operator is 3.2 mA.
