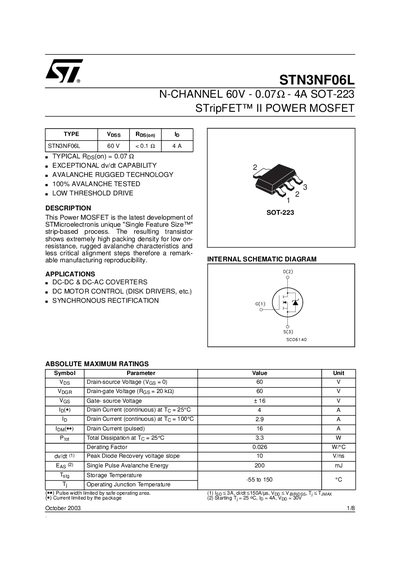

STN3NF06L is a N-channel 60V-0.07Ω-4A SOT-223 STripFET™ II power MOSFET from STMicroelectronics. It features a typical RDS(on)=0.07 Ω, exceptional dv/dt capability, rugged avalanche characteristics, 100% avalanche tested, and low threshold drive.
The STN3NFO6L is a 60 V N‑channel Power MOSFET in a SOT‑223 package, offering low on‑resistance, high avalanche ruggedness and fast switching performance. It is suited for DC‑DC converters, motor control, and synchronous rectification applications.
The document provides absolute maximum ratings, thermal data, detailed electrical characteristics, switching parameters, diode behavior, mechanical dimensions and legal disclaimer information.
| Drain‑source Voltage (Vds) | 60 V |
|---|---|
| Continuous Drain Current (Id) at 25 °C | 4 A |
| Total Power Dissipation (Pd) | 3.3 W |
| Typical On‑Resistance (Rds(on)) | 0.07 Ω |
| Output Capacitance (Coss) | 63 pF |
The device can handle up to 4 A continuous drain current at a case temperature of 25 °C.
The typical on‑resistance is 0.07 Ω.
The MOSFET is rated for a maximum drain‑source voltage of 60 V.
It is supplied in a SOT‑223 surface‑mount package.
