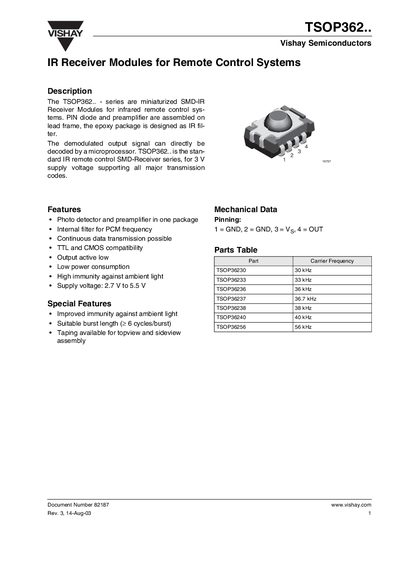

This document introduces the basic information of the TSOP362.. series infrared receiver modules, including feature characteristics, package size, pin definition, application circuit, absolute maximum ratings, electrical and optical characteristics.
The TSOP362.. series are miniaturized SMD IR receiver modules for remote‑control systems. Each device integrates a photodiode and preamplifier in a single package with an internal filter for PCM frequencies. The demodulated output is TTL/CMOS compatible and active low.
The document includes mechanical dimensions, pin assignments, electrical and optical characteristics, recommended soldering and storage procedures, as well as data‑format guidelines for reliable operation in noisy environments.
| Supply Voltage | 2.7 V to 5.5 V |
|---|---|
| Supply Current (typical) | 3 mA |
| Output Current | 10 mA |
| Junction Temperature (max) | 100 °C |
| Operating Temperature Range | -25 °C to +85 °C |
| Carrier Frequency (example) | 30 kHz (TSOP36230) |
The modules operate from 2.7 V up to 5.5 V.
Store them at 10 °C to 30 °C with humidity below 60 % RH.
