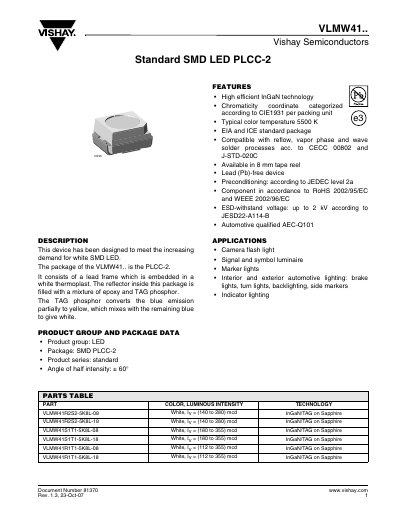

VLMW41.. is a white SMD LED from Vishay. The package is PLCC-2. It supports reflow, vapor phase and wave soldering processes. It is compatible with RoHS and WEEE standards, and conforms to AEC-Q101 19225 e3 automotive electronic components standard.
The VLMW41.. series are high‑efficiency white SMD LEDs in a PLCC‑2 package, intended for camera flash, signal lighting, automotive interior and exterior lighting, and other illumination applications. The device uses InGaN/TAG technology on a sapphire substrate and complies with RoHS and automotive AEC‑Q101 qualifications.
Key data include forward voltage of 3.3‑4.2 V at 20 mA, power dissipation of 84 mW, junction temperature up to 110 °C, and luminous intensity ranging from 112 mcd to 355 mcd depending on the brightness group. The LEDs are supplied on antistatic 8 mm blister tape reels, with recommended dry‑box storage at 10 °C‑30 °C and humidity ≤ 60 % RH.
| Forward voltage (VF) | 3.3‑4.2 V @ 20 mA |
|---|---|
| Power dissipation (PV) | 84 mW |
| Junction temperature (Tj) | 110 °C |
| Storage temperature range (Tstg) | -40 °C to +100 °C |
| Luminous intensity (IV) | 140‑280 mcd (R2S2), 180‑355 mcd (S1T1), 112‑355 mcd (R1T1) |
| Surge forward current | 0.1 A for ≤ 10 µs |
Dry‑box storage is recommended at 10 °C to 30 °C.
Yes, the devices are lead (Pb)‑free.
The surge forward current is limited to 0.1 A for pulses up to 10 µs.
They are supplied on antistatic 8 mm blister tape reels (GS08 or GS18).
