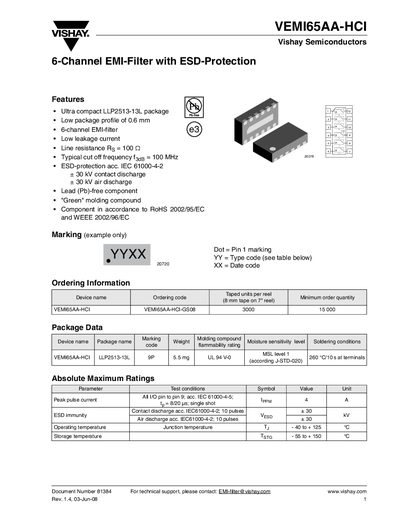

This document is the VEMI65AA-HCI electronic component datasheet, which introduces the characteristics, functions, parameters, applications and other information of this component.
The VEMI65AA-HCI EMI filter from Vishay provides six independent channels for signal line filtering and clamping. Each channel uses bidirectional Z‑diodes and a low‑pass network formed by the line resistance and diode capacitance, allowing low‑frequency signals to pass while high‑frequency noise is shunted to ground.
The device is supplied in a 0.6 mm‑high LLP2513‑13L package, is RoHS‑compliant, and meets IEC 61000‑4‑2 ESD standards with up to 30 kV contact and air discharge capability. Detailed electrical characteristics, package dimensions, and ordering information are provided for designers.
| Package | LLP2513-13L |
|---|---|
| Package profile | 0.6 mm |
| Line resistance (Rg) | 100 Ω |
| ESD protection | 30 kV contact and air discharge |
| Number of channels | 6 |
The VEMI65AA-HCI provides six independent EMI‑filter channels.
The line resistance (Rg) is specified as 100 Ω.
It meets IEC 61000‑4‑2 with up to 30 kV contact and 30 kV air discharge protection.
