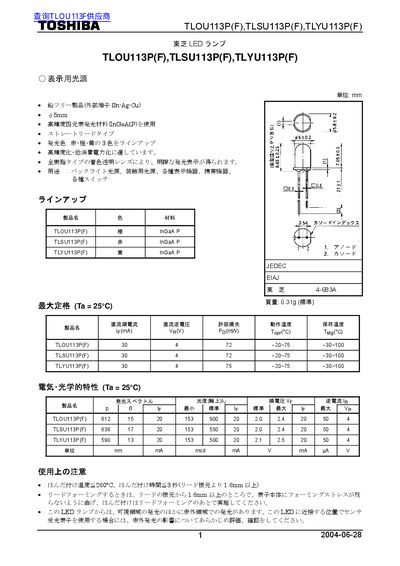

This document describes the features and characteristics of Toshiba LED lamps TLOU113P(F), TLSU113P(F), TLYU113P(F) on June 28, 2004, including lead-free construction, φ5mm size, use of high brightness quaternary element luminescent material (InGaAℓP), options of red, orange, and yellow emission colors, and their applications and maximum ratings.
The Toshiba TLOU113P(F), TLSU113P(F) and TLYU113P(F) series are high‑brightness LED lamps designed for backlight, decorative lighting, and various display devices. They use a four‑element InGaAP material and are available in red, green and yellow colors.
The datasheet provides electrical characteristics such as forward current of 30 mA, reverse voltage of 4 V, and power loss of 72 mW, as well as mechanical handling notes including a soldering temperature limit of 260 °C, soldering time of 8 seconds, and a minimum lead forming distance of 1.6 mm. Operating temperature ranges from –20 °C to 75 °C. This manual is written in Japanese.
| Forward current (IF) | 30 mA |
|---|---|
| Reverse voltage (VR) | 4 V |
| Power loss (P) | 72 mW |
| Soldering temperature limit | 260 °C |
| Lead forming distance | ≥1.6 mm |
| Emission colors | Red, Green, Yellow |
The recommended soldering temperature is 260 °C and the soldering time is 8 seconds.
The series is available in red, green, and yellow colors.
