The TS924 is a low noise, low distortion, high output current quad operational amplifier. Suitable for applications requiring low voltage, low noise, and high current.
The TS924 is a rail‑to‑rail quad BiCMOS operational amplifier optimized for low‑voltage operation (2.7 V – 12 V). It offers low noise (9 nV/√Hz), high output current (80 mA) and a gain‑bandwidth product of 4 MHz, making it suitable for audio, headphone, and piezo speaker applications.

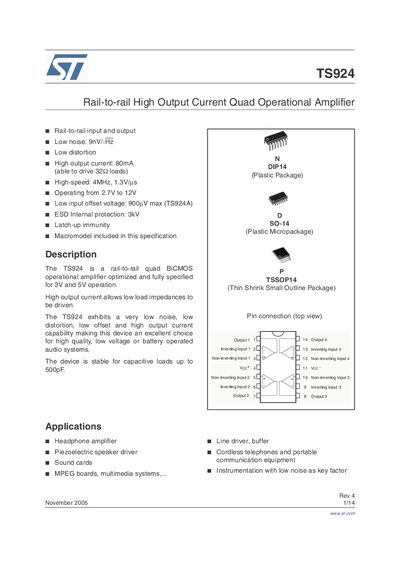

The document includes absolute maximum ratings, detailed electrical characteristics, package mechanical data, ordering codes for DIP14, TSSOP14 and SO‑14 packages, a macromodel for simulation, and a revision history.
| Input/Output Type | Rail‑to‑rail |
|---|---|
| Low Noise | 9 nV/√Hz |
| Output Current | 80 mA |
| Supply Voltage Range (operating) | 2.7 V – 12 V |
| Slew Rate | 0.7 V/µs |
| Common‑Mode Rejection Ratio | 80 dB |
The absolute maximum supply voltage is 14 V.
The TS924 is intended to operate from 2.7 V to 12 V.
