The LD1585C is a low dropout voltage regulator capable of providing up to 5A of output current. The device features a low dropout voltage and very fast transient response. It is suitable for low voltage applications where transient response and minimum input voltage are critical.
The LD1585Cxx is a 5 A low‑dropout, fast‑response positive voltage regulator designed for low‑voltage applications where transient response and minimal input voltage are critical. It offers typical dropout of 1.2 V, up to 1.4 V at full load, and an output tolerance of +1 % at 25 °C.

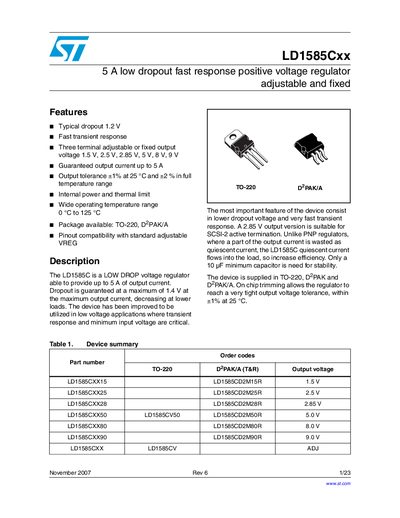

The document includes a diagram, pin configuration, absolute maximum ratings, typical application circuits, detailed electrical characteristics, package mechanical data, and revision history. It lists available packages (TO‑220, DPAK/A) and provides order codes for fixed‑output versions ranging from 1.5 V to 9 V.
| Typical dropout voltage | 1.2 V |
|---|---|
| Maximum output current | 5 A |
| Output tolerance | +1 % at 25 °C |
| Operating temperature range | 0 °C to 125 °C |
| Package options | TO-220, DPAK/A |
| Pinout compatibility | Standard adjustable VREG |
| Quiescent current | 5‑10 mA |
The typical dropout voltage is 1.2 V, with a maximum of 1.4 V at full load.
The LD1585Cxx can supply up to 5 A of output current.
It is offered in TO‑220 and DPAK/A packages.
