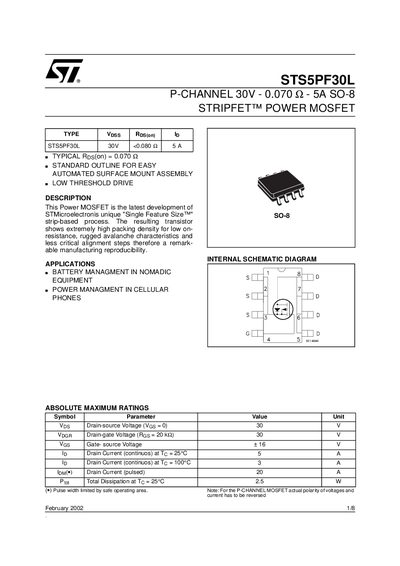

STS5PF30L is a P-channel MOSFET from STMicroelectronics. It features low on-resistance, high reliability, and low power consumption. It is suitable for use in battery management and power management in cellular phones.
The STS5PF30L is a 30 V P‑channel power MOSFET in a SO‑8 package, offering low on‑resistance (typical 0.070 Ω) and high current capability (5 A continuous, 20 A pulsed). It is designed for battery‑management and power‑management applications in portable equipment.
The document provides detailed electrical characteristics, thermal data, switching performance, and mechanical dimensions, along with typical application circuits and safety notes. All specifications are given for standard test conditions unless otherwise noted.
| Drain‑source Voltage (VDS) | 30 V |
|---|---|
| Gate‑source Voltage (VGS) | +16 V |
| Continuous Drain Current (ID) @ 25 °C | 5 A |
| Continuous Drain Current (ID) @ 100 °C | 3 A |
| Pulsed Drain Current (IDp) | 20 A |
| Total Power Dissipation (PD) | 2.5 W |
| Thermal Resistance Junction‑ambient (RθJA) | 50 °C/W |
| Maximum Junction Temperature (Tj) | -55 °C to 150 °C |
| Storage Temperature (Tstg) | -55 °C to 150 °C |
| Output Capacitance (Coss) | 490 pF |
| Reverse Transfer Capacitance (Crss) | 130 pF |
The STS5PF30L can conduct up to 5 A continuously at a case temperature of 25 °C.
