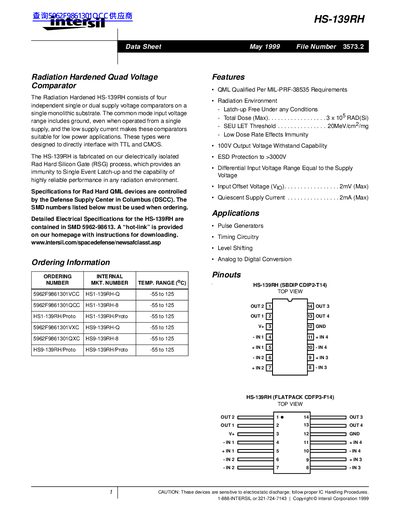

The HS-139RH is a quad voltage comparator produced by Intersil Corporation. It is fabricated using the dielectrically isolated Rad Hard Silicon Gate (RSG) process, which provides an immunity to Single Event Latch-up (SEU) and the capability of highly reliable performance in any radiation environment.
The HS-139RH integrates four independent voltage comparators on a single monolithic substrate. It operates from single or dual supplies, offers a differential input range equal to the supply voltage, and features low quiescent current suitable for low‑power applications. The device is fabricated using a rad‑hard silicon gate process that provides immunity to single‑event latch‑up and reliable performance in radiation environments.
Key specifications include a 100 V output voltage withstand capability, ESD protection exceeding 3000 V, a maximum input offset of 2 mV, and a quiescent supply current of 2 mA. Ordering information, pinouts, die dimensions, and material details are provided for designers and procurement engineers.
| Output Voltage Withstand Capability | 100 V |
|---|---|
| ESD Protection | >3000 V |
| Quiescent Supply Current (max) | 2 mA |
| Differential Input Voltage Range | Equal to the Supply Voltage |
| SEU LET Threshold | 20 MeV·cm⁻²·mg⁻¹ |
| Die Dimensions | 3750 µm × 2820 µm |
| Substrate | Radiation Hardened Silicon Gate, Dielectric Isolation |
| Transistor Count | 49 |
The HS-139RH can withstand up to 100 V on its output.
It provides ESD protection greater than 3000 V.
The quiescent supply current is specified as a maximum of 2 mA.
