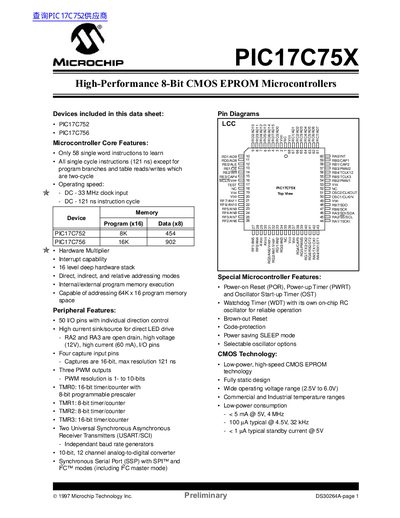

This data sheet introduces the core features, peripheral features, memory, and special microcontroller features of the PIC17C752 and PIC17C756 microcontrollers.
The PIC17C75X family includes the PIC17C752 and PIC17C756 68‑pin EPROM‑based microcontrollers. They offer a reduced 58‑instruction set, single‑cycle execution, a 16‑level deep stack, and a hardware multiplier. The devices operate up to 33 MHz and support a wide voltage range (2.5‑6.0 V).
The datasheet contains detailed pin diagrams for LCC, TQFP and DIP packages, memory organization, and peripheral blocks such as four timers, three PWM channels, two USARTs, a 12‑channel 10‑bit ADC, and an SSP module with SPI and I²C modes. Electrical characteristics, packaging options, and programming options (EPROM, ROM, OTP, QTP) are also described.
| Maximum Frequency of Operation | 33 MHz |
|---|---|
| Operating Voltage Range | 2.5 V to 6.0 V |
| Hardware Multiplier | Yes (8 x 8) |
The device can operate up to 33 MHz.
