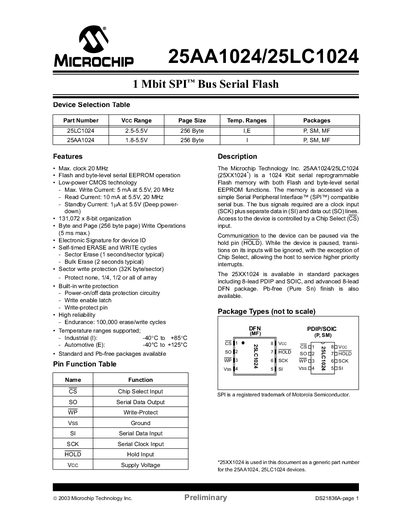

The file is the datasheet of 25AA1024/25LC1024
The 25AA1024 and 25LC1024 are 1 Mbit Serial Flash devices that combine Flash and byte‑level EEPROM functions. They communicate over a standard SPI bus and support a wide supply range, low‑power operation, and built‑in write protection features. The devices are offered in PDIP, SOIC, and DFN packages with Pb‑free options.
Key features include a maximum clock frequency of 20 MHz, 256‑byte page size, sector and chip erase capabilities, and endurance of 100 k erase/write cycles. The parts operate from –40 °C to +85 °C (industrial) or –40 °C to +125 °C (automotive) and provide deep‑power‑down standby current of 1 µA.
| Memory organization | 131,072 × 8‑bit |
|---|---|
| Page size | 256 Byte |
| Maximum clock frequency | 20 MHz |
| Supply voltage (25LC1024) | 2.5 V – 5.5 V |
| Supply voltage (25AA1024) | 1.8 V – 5.5 V |
| Endurance | 100 k erase/write cycles |
| Industrial temperature range | -40 °C to +85 °C |
| Automotive temperature range | -40 °C to +125 °C |
| Standby current (deep power‑down) | 1 µA at 5.5 V |
The devices support a maximum clock frequency of 20 MHz.
Up to 256 bytes can be written in a single page write operation.
The standby current in deep power‑down mode is 1 µA at 5.5 V.
Industrial range is –40 °C to +85 °C and automotive range is –40 °C to +125 °C.
