The MCP6281/1R/2/3/4/5 family of operational amplifiers (op amps) provided by Microchip Technology Inc. have wide bandwidth and low power consumption.
The MCP6281/1R/2/3/4/5 series from Microchip provides rail‑to‑rail input and output, low quiescent current, and an extended temperature range suitable for automotive, portable equipment, and battery‑powered systems. The family includes single, dual, and quad packages, with optional chip‑select functionality for low‑power operation.

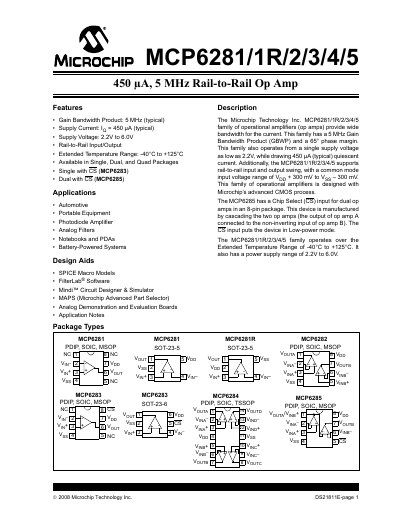

The datasheet details electrical specifications, typical performance curves, and package information. It also includes design aids such as SPICE models, FilterLab® software, and application notes, as well as code‑protection and quality‑management information for developers.
| Gain Bandwidth Product | 5 MHz (typical) |
|---|---|
| Supply Voltage | 2.2 V to 6.0 V |
| Quiescent Current per Amplifier | 300 pA – 450 pA (typical) |
| Input Offset Voltage | ±3 mV to ±5 mV |
| Operating Temperature Range | -40 °C to +125 °C |
The devices operate from a supply voltage of 2.2 V to 6.0 V.
The typical gain‑bandwidth product is 5 MHz.
It operates from –40 °C up to +125 °C.
Each amplifier draws between 300 pA and 450 pA typical quiescent current.
