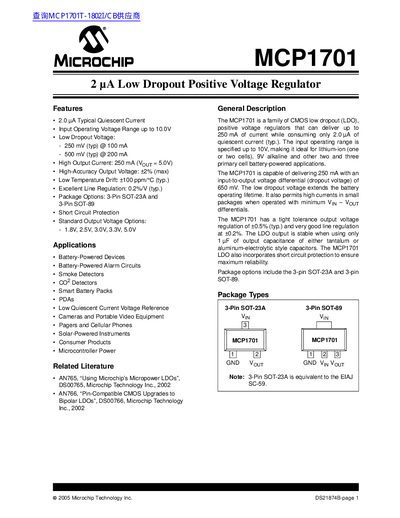

The features and characteristics of the MCP1701 series of low voltage drop linear regulators are introduced, including working voltage range, output current, static current, output voltage, package type, application scenarios, etc.
The MCP1701 is a CMOS low‑dropout (LDO) positive voltage regulator that delivers up to 250 mA while consuming an extremely low quiescent current. It operates from input voltages up to 10 V and is suitable for battery‑powered devices such as alarms, smoke detectors, and portable electronics.
The document lists detailed electrical specifications, absolute maximum ratings, pin functions, temperature characteristics, and typical performance curves. It also includes notes on code protection, quality management, and worldwide sales and service contacts.
| Quiescent Current | 2.0 pA typ. |
|---|---|
| Dropout Voltage | 250 mV typ. @ 100 mA |
| Maximum Output Current | 250 mA (Vout = 5.0 V) |
| Output Voltage Options | 1.8 V, 2.5 V, 3.0 V, 3.3 V, 5.0 V |
| Line Regulation | 0.2 %/V typ. |
The MCP1701 consumes a typical quiescent current of 2.0 pA.
The dropout voltage is typically 250 mV at 100 mA load.
The device can be configured for 1.8 V, 2.5 V, 3.0 V, 3.3 V, or 5.0 V output.
The MCP1701 can deliver up to 250 mA continuously at a 5.0 V output.
