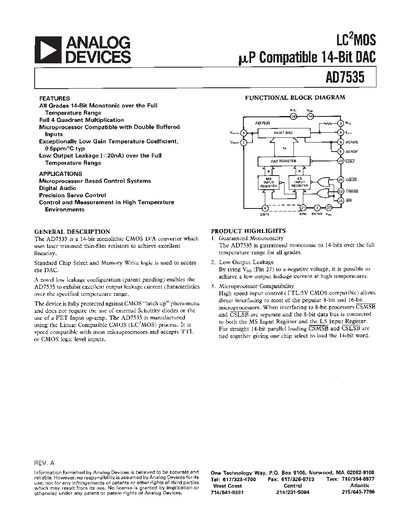

The AD7535 is a 14‑bit monolithic CMOS DAC featuring low gain temperature coefficient (0.5 ppm/°C typ) and low output leakage (<5 nA). It supports microprocessor interfaces with TTL/CMOS logic levels and offers full‑scale 4‑quadrant multiplication.
The document includes detailed specifications, pin descriptions, timing diagrams, grounding techniques, and mechanical dimensions for both ceramic (D‑28A) and plastic (N‑28) 28‑pin DIP packages.
| Gain Temperature Coefficient | 0.5 ppm/°C (typ) |
|---|---|
| Supply Voltage Range (Vpp) | +11.4 V to +15.75 V |
Its typical gain temperature coefficient is 0.5 ppm/°C.
