This document provides information on the electrical characteristics of REV. D DAC10, including resolution, nonlinearity, settling time, output voltage, etc.

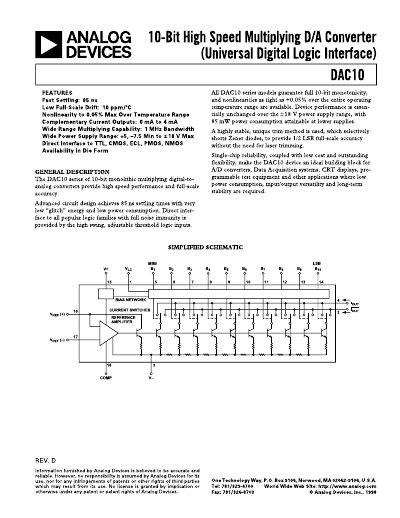

The DAC10F and DAC10G are 10‑bit multiplying digital‑to‑analog converters offering high‑speed settling, low non‑linearity, and wide supply voltage range. The datasheet provides detailed electrical characteristics, absolute maximum ratings, and package dimensions for various lead‑frame options.
Key features include monotonicity of 10 bits, typical settling time of 85 ns, output capacitance of 18 pF, and full‑scale output current up to 4 mA. The document also outlines recommended wiring, reference amplifier configurations, and logic input level specifications for interfacing with common logic families.
| Monotonicity | 10 bits |
|---|---|
| Nonlinearity (NL) | 0.3 – 0.6 LSB |
| Differential Nonlinearity (DNL) | 0.3 – 1 LSB |
| Output Capacitance | 18 pF |
| Logic Input High Level (VIH) | 2 V |
The device can operate with a total supply voltage up to 36 V (V+ to V–).
The output capacitance is 18 pF.
