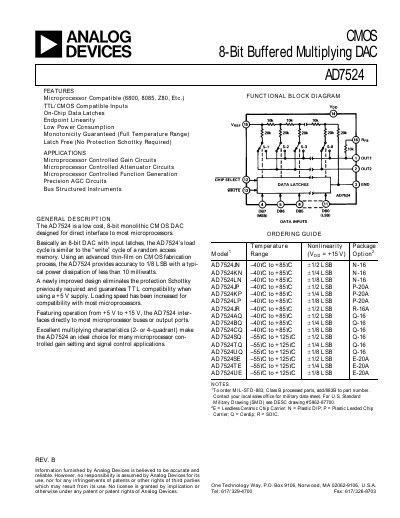

The AD7524 is a low-cost, 8-bit monolithic CMOS DAC designed for direct interface to most microprocessors. It is basically an 8-bit DAC with input latches, and its load cycle is similar to the 'write' cycle of a random access memory. Using an advanced thin-film on CMOS fabrication process, the AD7524 provides accuracy to 1/8 LSB with a typical power dissipation of less than 10 milliwatts.
The AD7524 is a low‑cost, 8‑bit monolithic CMOS DAC designed for direct interface to most microprocessors. It features on‑chip data latches, low power dissipation (typical <10 mW) and guaranteed monotonicity over the full temperature range.
The device operates from a +5 V to +15 V supply and is available in multiple package options with temperature ranges from –40 °C to +85 °C (commercial) up to –55 °C to +125 °C (extended). Detailed specifications, absolute maximum ratings, pin configurations and functional block diagrams are provided.
| Resolution | 8 bits |
|---|---|
| Monotonicity | Guaranteed |
| Power Supply Current (IDD) | 1 mA |
The AD7524 operates from –40 °C to +85 °C for commercial, industrial, and –55 °C to +125 °C for extended temperature versions.
Typical power dissipation is less than 10 mW.
The device can be powered from a supply voltage (VDD) of +5 V to +15 V.
