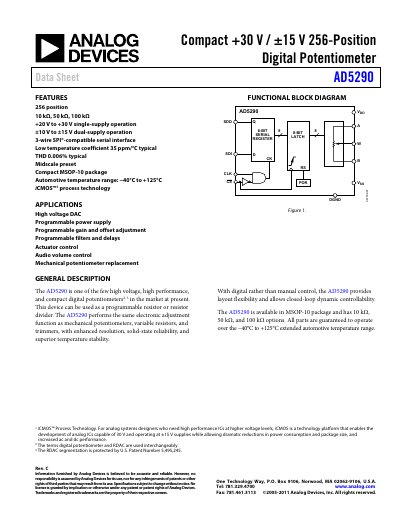

The AD5290 is a high voltage, high performance digital potentiometer with 256 positions and resistance ranges of 10kΩ, 50kΩ, and 100kΩ. It can operate on a single supply of +20 V to +30 V or dual supplies of ±10 V to ±15 V. It utilizes the low temperature coefficient iCMOS™1 process technology and features a compact MSOP-10 package and automotive temperature range of -40°C to +125°C.
The AD5290 digital potentiometer provides 256 discrete positions and is available in 10 kΩ, 50 kΩ, and 100 kΩ resistance options. It operates from a single supply of +4.5 V to +33 V or a dual supply of ±4.5 V to ±16.5 V and is qualified for automotive temperature ranges of –40 °C to +125 °C.
Its 3‑wire SPI‑compatible serial interface allows easy integration into microcontroller‑based systems. The device features a low temperature coefficient of 35 ppm/°C, typical THD of 0.006 %, and bandwidth up to 470 kHz depending on the resistance version. The compact MSOP‑10 package makes it suitable for space‑constrained designs.
| Number of positions | 256 |
|---|---|
| Supply voltage range | +30 V single‑supply or ±15 V dual‑supply |
| Interface | 3‑wire SPI‑compatible serial interface |
| Temperature coefficient | 35 ppm/°C (typical) |
| Total Harmonic Distortion | 0.006 % (typical) |
| Automotive temperature range | −40 °C to +125 °C |
| Package | MSOP‑10 |
It can operate from a single supply of +30 V (or as low as +4.5 V) or a dual supply of ±15 V (or as low as ±4.5 V).
The device offers 256 discrete positions.
It is qualified for automotive temperatures from –40 °C to +125 °C.
It uses a 3‑wire SPI‑compatible serial interface.
