PJD5112 is a high-brightness, high-contrast projector that supports 3D and has an integrated closed caption decoder. It has a brightness of 2700 ANSI lumens and a contrast ratio of 2800:1. It uses BrilliantColor™ technology.

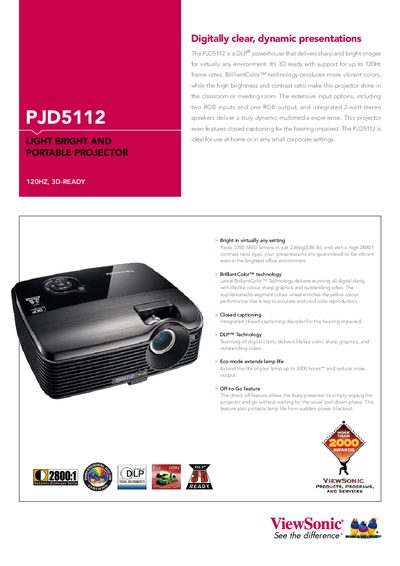

This manual covers the key features of the ViewSonic PJD5112 portable projector, including its 2700 ANSI lumens brightness, 2800:1 contrast ratio, and 3D‑ready capability up to 120 Hz. It details the projector’s input options, audio output, and optional accessories such as replacement lamps and remote control.
The document also lists technical specifications, environmental operating limits, and regulatory compliance, and provides guidance on installation, basic controls, and advanced settings like keystone correction, color adjustment, and closed captioning.
| Brightness | 2700 ANSI lumens |
|---|---|
| Contrast Ratio | 2800:1 (typ) |
| Resolution | SVGA 800x600 (native) / UXGA 1600x1200 (compressed) |
| Lamp Life | 3500 h normal / 5000 h eco |
| Throw Ratio | 1.61 |
| Power Consumption | 235 W typical / <1 W standby |
| Dimensions | 280 × 114 × 218 mm (11 × 4.5 × 8.58 in) |
| Weight | 2.66 kg (5.86 lb) |
The lamp lasts 3500 hours in normal mode and up to 5000 hours in eco mode.
The projector delivers 2700 ANSI lumens of brightness.
The projector can operate from 0 °C to 40 °C (32 °F‑104 °F).
