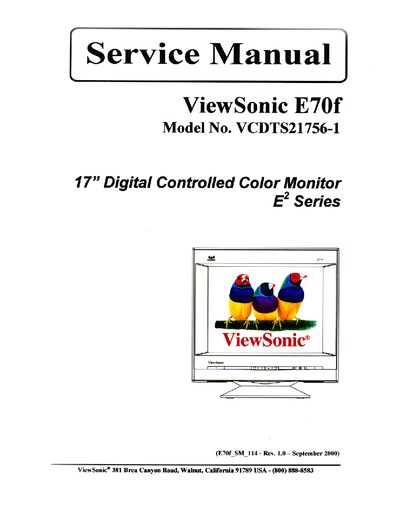

This Service Manual provides detailed safety precautions, required service tools, and step‑by‑step procedures for repairing the ViewSonic E70f 17‑inch digital color monitor. It includes warnings about high‑voltage hazards, X‑ray radiation limits, and proper handling of the picture tube.
The document also lists the monitor's technical specifications, block and schematic diagrams, wiring diagrams, exploded view with parts list, PCB layouts, troubleshooting flow chart, and adjustment procedures, enabling technicians to diagnose and service the unit effectively.
| CRT size | 17 inch Real Flat Type |
|---|---|
| Viewable size | 16 inch (Diagonal) |
| Dot pitch | 0.25 mm |
| Maximum resolution | 1280 x 1024 |
| Pixel rate | 110 MHz |
| Input video signal | RGB Analogue 0.7 Vpp, 75 Ω |
| Power supply range | 90 to 264 VAC, 48 to 62 Hz |
| Maximum power consumption | 130 W |
The required tools are a multimeter, oscilloscope, screw driver, soldering iron, absorber, and a TRON device.
The monitor consumes up to 130 W at maximum load.
It supports resolutions up to 1280 × 1024 pixels.
