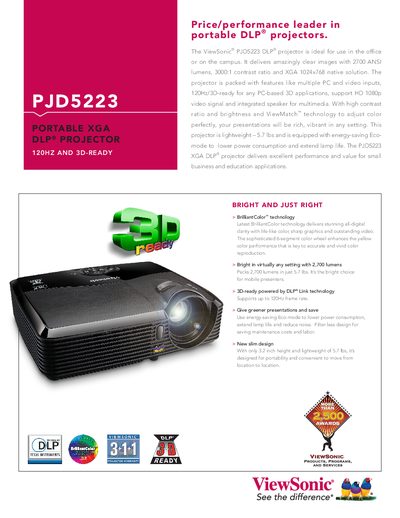

The ViewSonic® PJD5223 DLP® projector is ideal for use in the office or on the campus. It delivers amazingly clear images with 2700 ANSI lumens, 3000:1 contrast ratio and XGA 1024x768 native solution. The projector is packed with features like multiple PC and video inputs, 120Hz/3D-ready for any PC-based 3D applications, support HD 1080p video signal and integrated speaker for multimedia. With high contrast ratio and brightness and ViewMatch™ technology to adjust color perfectly, your presentations will be rich, vibrant in any setting. This projector is lightweight – 5.7 lbs and is equipped with energy-saving Eco- mode to lower power consumption and extend lamp life. The PJD5223 XGA DLP® projector delivers excellent performance and value for small business and education applications. Price/performance leader in portable DLP® projectors.
The ViewSonic PJD5223 is a lightweight, portable XGA DLP projector offering 2,700 lumens brightness, 3,000:1 dynamic contrast, and 120 Hz 3D‑ready performance. It features a 0.55" DMD, 6‑segment color wheel, Eco‑mode for lower power consumption, and a slim 3.2‑inch height design.
This manual covers the projector’s specifications, input connections, control functions, installation guidelines, and operating procedures. It also lists optional accessories, warranty information, and regulatory compliance details.
| Brightness | 2,700 Lumens |
|---|---|
| Contrast Ratio | 2000:1 (typ) / 3000:1 (dynamic) |
| Resolution | XGA 1024x768 (Native) |
| Lamp Life (Eco‑mode) | 6,000 hours |
| Throw Ratio | 1.97‑2.17:1 |
| Power Consumption (typ) | 235 W |
| Net Weight | 57 lb (2.6 kg) |
The Eco‑mode lamp life is rated for 6,000 hours.
It supports RS‑232 (DB‑9) and USB Type‑B for remote control and configuration.
The projector operates from 32 °F (0 °C) up to 104 °F (40 °C).
