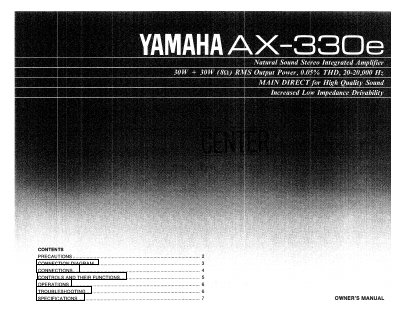

Yamaha AX-330e Integrated Amplifier Owner's Manual

About this manual

This document is the Owner's Manual for the Yamaha AX-330e Integrated Amplifier. It covers safety precautions, proper ventilation requirements, and handling instructions for the power cord and controls. The guide details how to connect various audio components, including turntables, tuners, CD players, and tape decks, to the amplifier's rear panel terminals.

What's inside

• Precautions
• Connection Diagram
• Connecting Speakers
• Connecting a Turntable
• Connecting a Tuner
• Connecting to CD and VCR/AUX
• Connecting the Tape Deck
• Controls and Their Functions
• Normal Listening Operation
• Troubleshooting

Specifications

Frequently asked questions

How should I connect the ground wire for a turntable?

Connect the ground wire to the GND terminal on the amplifier to produce minimum hum.

What happens if I connect both SWITCHED SPEAKERS and DIRECT SPEAKERS terminals?

Do not use both terminals at the same time, as it might result in a malfunction.

How do I reset the speaker protection circuit?

Turn the unit off and then on again to reset the circuit if the sound suddenly goes off.
