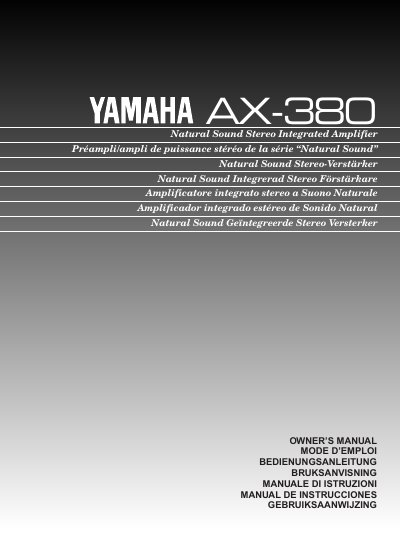

Yamaha AX-380 Stereo Integrated Amplifier Owner's Manual

This manual describes the functions and usage of the Natural Sound series stereo amplifier AX-380

Brand: Yamaha
Category: Other products
Document type: User Manual
Language: English
Pages: 13
File format: PDF
File size: 117 KB
Published: 08 June, 2012
Updated: 30 September, 2023
MD5 checksum: 28E64C2ACB483BB91203F2E2CFE73B0B
PDF: Yamaha AX-380 Stereo Integrated Amplifier Owner's Manual PDF

About this manual

The Yamaha AX-380 is a stereo integrated amplifier featuring 55W + 55W RMS output power and a continuously variable loudness control. The unit includes a remote control transmitter and supports various input sources including CD, tuner, phono, and tape decks.

What's inside

Supplied Accessories
Caution
Connections
Connecting Speakers
About the Accessory Terminals
To Play a Source
To Record a Source to Tape
Specifications

Specifications

Output Power	55W + 55W (8) RMS
Total Harmonic Distortion	0.04% THD
Frequency Response	20 — 20,000 Hz
Voltage	110/120/220/240V AC
Frequency	50/60 Hz

Frequently asked questions

What is the maximum power that can be connected to the switched AC outlet?

The maximum power that can be connected to the SWITCHED AC OUTLET(S) is 100 watts.

How do you connect speaker wires to the amplifier?

Unscrew the knob, insert the bare wire after removing approx. 5mm of insulation, and then tighten the knob to secure the wire.
