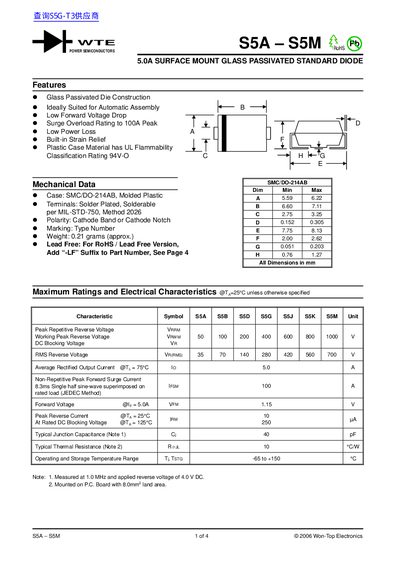

S5A – S5M is a 5.0A surface mount glass passivated standard diode produced by Won-Top Electronics. It features low forward voltage drop, low power loss, built-in strain relief, plastic case, etc.
The S5A/S5M series are 5.0 A surface‑mount glass‑passivated standard diodes designed for automatic assembly. They feature low forward voltage drop, built‑in strain relief, and a UL‑rated plastic case. Electrical characteristics include a peak repetitive reverse voltage of 50 V for the S5A variant, a forward voltage of 1.15 V at 5 A, and an operating temperature range of –65 °C to +150 °C.
Mechanical data specify a DO‑214AB (SMC) package with a case length of 5.59 mm, weight of 0.21 g, and lead‑free RoHS‑compliant options. Packaging is supplied on tape & reel (330 mm reel, 3 000 pieces per reel) with standard EIA‑481 labeling. Ordering information lists part numbers for each voltage rating, and the RoHS/lead‑free version is indicated by an “‑LF” suffix.
| Package – Case Length (SMC/DO‑214AB) | 5.59 mm |
|---|---|
| Weight | 0.21 g (approx.) |
The recommended footprint is a minimum of 0.060 in (1.52 mm).
