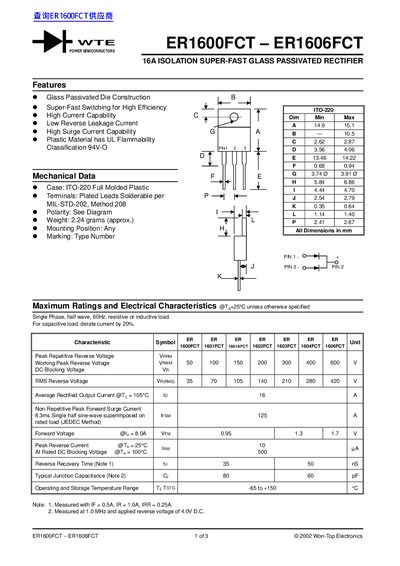

ER1600FCT-ER1606FCT is a 16A isolation super-fast glass passivated rectifier produced by Won-Top Electronics. It has glass passivated die construction, super-fast switching, high efficiency, high current capability, low reverse leakage current, high surge current capability, UL 94V-O flammability classification and other features.
The ER1600FCT to ER1606FCT series are 16 A isolation rectifiers featuring glass‑passivated die construction, super‑fast switching for high efficiency, low reverse leakage current and high surge current capability. They are supplied in a TO‑220 full‑molded plastic case with plated lead terminals and are suitable for single‑phase, half‑wave 60 Hz applications.
Mechanical data include a weight of about 2.24 g and dimensions in millimetres. Electrical ratings cover peak repetitive reverse voltage up to 600 V, RMS reverse voltage up to 420 V, average rectified output current of 16 A at 105 °C, and reverse recovery times of 35‑50 ns. Ordering information lists the devices in TO‑220 packages with a minimum packing quantity of 50 units per tube.
| Forward Voltage at 8 A | 0.95 V – 1.7 V (depending on model) |
|---|---|
| Reverse Recovery Time | 35 ns – 50 ns |
| Typical Junction Capacitance | 60 pF – 80 pF |
| Operating Temperature Range | -65 °C to +150 °C |
| Case Type | TO‑220 Full Molded Plastic |
| Weight | 2.24 g (approx.) |
For capacitive loads, the current should be derated by 20 %.
No, they are not authorized for use in life‑support equipment without written approval.
