B40C1000 - B500C1000 is a 1.0A single-phase bridge rectifier with features such as diffused junction, low forward voltage drop, high current capability, high reliability, and high surge current capability. It is ideal for printed circuit boards.

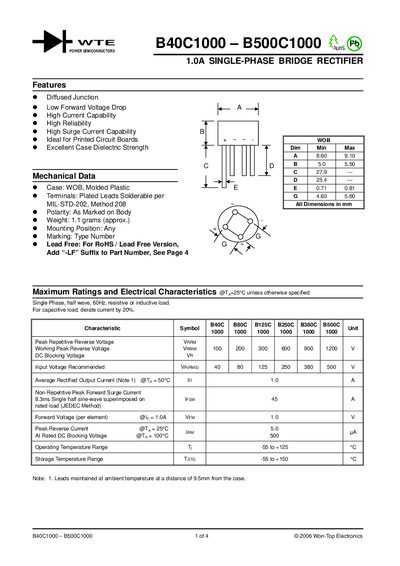

This document is a technical datasheet for the Won-Top Electronics B40C1000 series of single-phase bridge rectifiers. It covers models ranging from B40C1000 to B500C1000, providing specifications such as peak repetitive reverse voltage and average rectified output current.
| Product Type | Single-Phase Bridge Rectifier |
|---|---|
| Average Rectified Output Current | 1.0 A |
| Operating Temperature Range | -55 to +125 °C |
| Case Material | Molded Plastic |
Add the "-LF" suffix to the part number.
The maximum non-repetitive peak forward surge current is 45 A.
