This document describes the features of BAV70 surface mount fast switching diode, including high conductance, fast switching, surface mount package, etc. It is ideally suited for automatic insertion, general purpose, and switching applications.

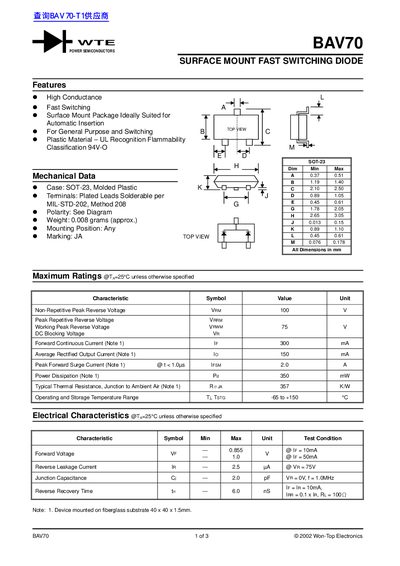

This document is a technical datasheet for the WTE BAV70, a surface mount fast switching diode designed for general purpose and switching applications. It features high conductance and is available in an SOT-23 plastic package with UL 94V-0 flammability classification.
The datasheet provides maximum ratings such as a non-repetitive peak reverse voltage of 100V and a forward continuous current of 300mA. It also includes electrical characteristics like typical forward voltage, reverse leakage current, and junction capacitance under specific test conditions.
| Package Type | SOT-23 |
|---|---|
| Non-Repetitive Peak Reverse Voltage | 100 V |
| Forward Continuous Current | 300 mA |
| Operating Temperature Range | -65 to +150 °C |
The typical forward voltage is 0.85V at a test current of 10mA.
The typical reverse recovery time is 6.0 ns under specified test conditions.
