The DD500/S – DD506/S 50A 8.4mm/9.5mm DISH DIODE is a high-performance product produced by Won-Top Electronics. It features glass passivated die construction, low leakage, low cost, high surge current capability, low forward voltage, C-band terminal construction, etc.

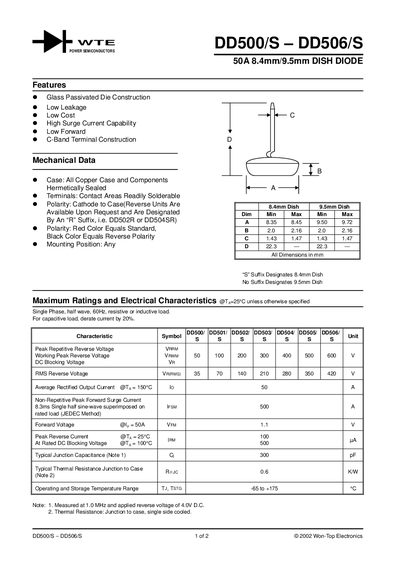

This document provides technical specifications for the Won-Top Electronics DD500/S to DD506/S series of glass passivated die construction dish diodes. The components feature low leakage, high surge current capability, and C-Band terminal construction suitable for various mounting positions.
The datasheet lists maximum ratings including peak repetitive reverse voltage ranging from 50V to 600V and average rectified output currents up to 50A. It also includes mechanical dimensions in millimeters and ordering information for press-fit packages shipped in trays of 200 units.
| Series Range | DD500/S — DD506/S |
|---|---|
| Case Material | All Copper Case and Components |
| Average Rectified Output Current | 50 A |
| Non-Repetitive Peak Forward Surge Current | 500 A |
| Typical Thermal Resistance Junction to Case | 0.6 KW |
| Operating and Storage Temperature Range | -65 to +175 °C |
No suffix designates a 9.5mm dish.
The maximum average rectified output current at a case temperature of 150°C is 50 A.
For capacitive loads, you must derate the current by 20%.
The operating and storage temperature range is from -65 to +175 °C.
