The SS0520 - SS0540 is a surface mount Schottky barrier diode produced by Won-Top Electronics. It features low turn-on voltage, fast switching, PN junction guard ring, and is designed for surface mount applications.

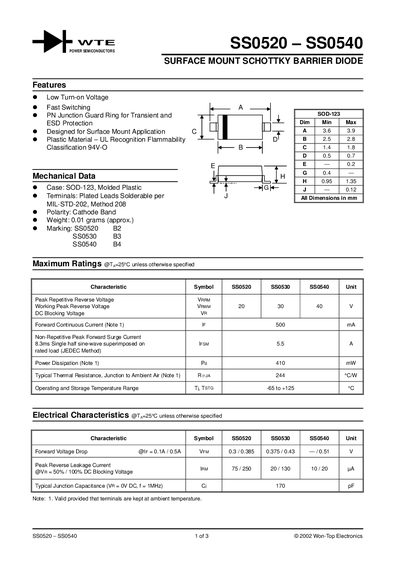

This document is a technical datasheet for the Won-Top Electronics S0520-S0540 series of Surface Mount Schottky Barrier Diodes. The devices feature low turn-on voltage, fast switching speeds, and are designed for surface mount applications in an SOD-123 plastic package.
The datasheet provides maximum ratings, electrical characteristics including forward voltage drop and reverse leakage current, thermal resistance data, and typical performance curves such as the forward current derating curve. It also includes ordering information with shipping quantities for different reel sizes.
| Package Type | SOD-123, Molded Plastic |
|---|---|
| Forward Continuous Current | 500 mA |
| Power Dissipation | 410 mW |
| Operating Temperature Range | -65 to +125 °C |
The forward voltage drop ranges from 0.3 V to 0.51 V depending on the specific model and current.
The typical junction capacitance is 170 pF when measured at a reverse voltage of 0V and frequency of 1MHz.
