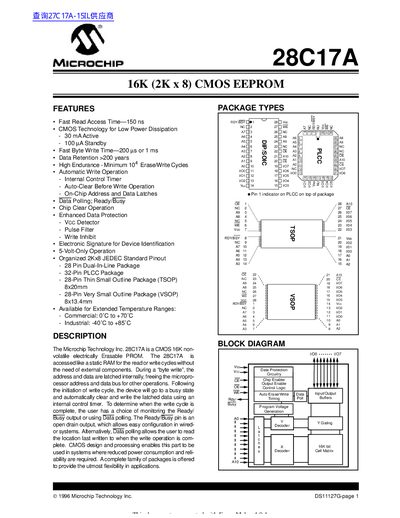

The Microchip Technology Inc. DS11127G is a 16K non-volatile electrically Erasable PROM with fast read access time, low power dissipation and high endurance
The 28C17A is a 16‑Kbit (2K × 8) CMOS EEPROM that operates like a static RAM for read and write cycles, offering fast 150 ns read access and 200 µs‑1 ms byte‑write times. It features low standby current, high endurance, and data‑retention of over 200 years.
The device is offered in several packages (28‑pin DIP, PLCC, TSOP, VSOP) and supports commercial (0 °C to +70 °C) and industrial (‑40 °C to +85 °C) temperature ranges. Ordering information, worldwide sales contacts, and detailed electrical characteristics are provided throughout the handbook.
| Memory size | 16 Kbit (2K × 8) CMOS EEPROM |
|---|---|
| Read access time | 150 ns |
| Byte write time | 200 µs or 1 ms |
| Data retention | >200 years |
| Endurance | Minimum 10* erase/write cycles |
| Supply voltage | VCC = +5 V ±10 % |
| Active current (TTL input) | 30 mA |
| Standby current (TTL input) | 2 mA |
| Operating temperature (commercial) | 0 °C to +70 °C |
| Operating temperature (industrial) | -40 °C to +85 °C |
The read access time is 150 ns.
It operates from a VCC of +5 V with a ±10 % tolerance.
The device is rated for a minimum of 10* erase/write cycles.
Commercial range is 0 °C to +70 °C and industrial range is –40 °C to +85 °C.
