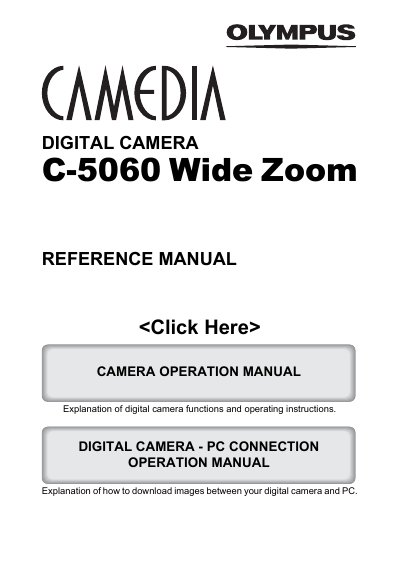

This document is a reference manual for the Olympus digital camera C-5060 Wide Zoom, providing detailed explanations of the camera functions and operating instructions, as well as instructions on how to download images between the digital camera and PC.
This manual covers all aspects of using the Olympus C-5060 Wide Zoom digital camera, from basic setup and battery handling to advanced shooting modes, flash usage, and image quality adjustments. Detailed sections explain menu navigation, focusing options, and how to connect the camera to a PC or printer.
Additional chapters describe playback functions, movie editing, printing options, and a full list of technical specifications, including sensor size, lens details, and power requirements. The document also includes troubleshooting tips and regulatory information.
| Effective pixels | 5,100,000 pixels |
|---|---|
| Image pickup device | 1/1.8" CCD solid‑state, 5,260,000 pixels (gross) |
| Lens focal length | 5.7 mm – 22.9 mm (equivalent 27 mm – 110 mm on 35 mm film) |
| Aperture range | f2.8 – f8.0 |
| Shutter speed range | 15 sec – 1/2000 sec (max 1/4000 sec, bulb up to 120 sec) |
| Viewfinder type | Optical real‑image viewfinder |
| LCD monitor | 1.8" TFT color LCD, 130,000 pixels |
| Power supply | Olympus BLM‑1 lithium‑ion battery (optional AC adapter) |
| Dimensions | 116 mm × 87 mm × 65.5 mm (W × H × D) |
| Weight | Approx. 430 g (0.9 lb) without battery and card |
Select the menu option “Setting the date and time” from the camera’s on‑screen menu to adjust the clock.
Insert the battery into the camera, connect the supplied AC adapter or USB cable, and allow the battery indicator to show a full charge.
