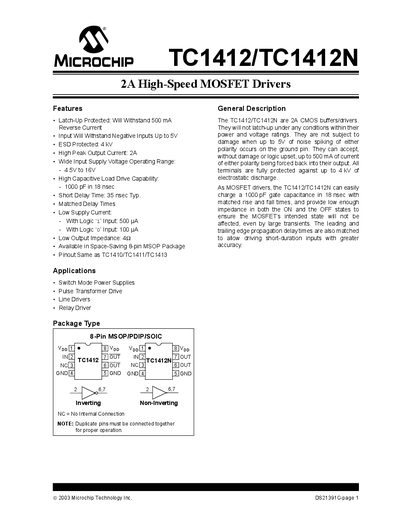

The TC1412/TC1412N are 2A CMOS buffers/drivers, feature short delay times, low supply current and low output impedance.
The TC1412/TC1412N is a 2 A CMOS MOSFET driver that offers latch‑up protection, ESD protection up to 4 kV, and low output impedance. It can drive a 1000 pF gate capacitance in about 18 ns with matched rise and fall times, making it suitable for switch‑mode power supplies and pulse‑transformer drives.
The document provides absolute maximum ratings, typical electrical characteristics, pin descriptions, and application notes. It also includes performance curves, code‑protection information, and worldwide sales and service contacts for Microchip.
| Peak Output Current | 2 A |
|---|---|
| Latch‑Up Reverse Current Rating | 500 mA |
| ESD Protection | 4 kV |
| Low Supply Current (Logic ‘1’) | 500 pA |
| Low Output Impedance | 4 Ω |
| Rise Time (1000 pF load) | 18 ns |
| Typical Delay Time | 35 ns |
The driver can source up to 2 A peak output current.
Yes, it is latch‑up protected and can withstand a reverse current of 500 mA.
The device is protected against electrostatic discharge up to 4 kV.
