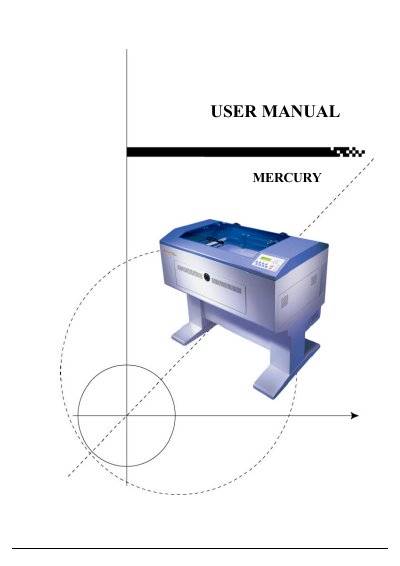

This manual introduces the Mercury CO2 laser system, covering its operating principles, safety precautions, and recommended configuration. It explains hardware installation, cabling, and software setup, guiding users through initial startup and routine operation.
Additional sections detail basic maintenance, troubleshooting, and optional accessories such as rotary attachments and dual heads. Appendices include 3D functions, application parameters, and a full specification table for all supported laser power models. This manual is written in Chinese.
| Laser Power Options | 12W‑120W |
|---|---|
| Work Area | 25" × 18" (635 mm × 458 mm) |
| Maximum Working Piece (doors closed) | 31.5" × 22.4" × 6.5" (800 mm × 570 mm × 165 mm) |
| Table Size | 31" × 20.9" (790 mm × 530 mm) |
| Overall Dimensions | 44.3" × 28.3" × 39.6" (1125 mm × 720 mm × 1005 mm) |
| Drive | DC servo control |
| Speed Control Range | 0.1 % – 100 % of 42 in/sec |
| Power Control Range | 0.1 % – 100 % |
| Z‑Axis Resolution (DPI) | 200, 250, 300, 500, 600, 1000 |
| Computer Interface | Print port and serial port |
| Memory Buffer | 16 MB standard, upgradeable to 64 MB |
| Power Supply | 100‑240 V AC (auto‑switch 200‑240 V) |
| Power Consumption | 900 W – 3000 W depending on model |
Virtually any material such as acrylic, wood, fabrics, glass, leather, marble, stone, rubber, paper products, coated metals, and many plastics can be engraved or cut, while bare metals require special spray coatings.
The laser source is rated for around 20,000 hours of operation and can be refilled by an authorized dealer.
The air assist system blows away vaporized particles, improves engraving and cutting quality, and helps prevent fire caused by overheating.
