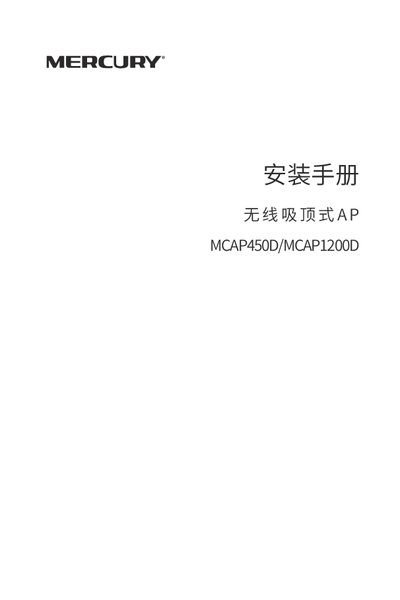

Installation guide for Mercury MCAP450D and MCAP1200D wireless ceiling access points, covering hardware features, setup steps, and web management.
This manual provides detailed instructions for installing the Mercury MCAP450D and MCAP1200D wireless ceiling access points. It covers product overview, required tools, power options, mounting methods, and safety precautions.
The guide also explains how to reset the device, switch between FAT and FIT modes, and access the web management interface for configuration. Appendices include technical parameters, warranty information, and regulatory statements. This manual is written in Chinese.
| Power supply options | DC adapter or Passive PoE |
|---|---|
| System indicator light behavior | Steady during initialization, flashes 2 seconds after init |
| Reset procedure | Long‑press RESET until indicator flashes 4 times, then release |
Press and hold the RESET button until the system indicator flashes four times, then release; the AP will restore factory settings and reboot.
The AP can be powered either by a DC power adapter or by a Passive PoE power supply supplied with the device.
