Netgear SRX5308 is a high-performance quad WAN gigabit Ethernet SSL VPN firewall that delivers ultra-high performance business-class firewall security. The firewall features a hardware-accelerated data flow architecture that allows for 1 Gbps of stateful firewall throughput. It also has multi-dimensional security features including denial-of-service (DoS) protection, stateful packet inspection (SPI), URL keyword filtering, a configurable hardware DMZ port, logging, reporting and real-time alerts. QoS, WAN traffic metering and bandwidth profiling provide you with granular bandwidth management capabilities. VLAN support allows you to separate guest traffic from critical production servers. Four Gigabit LAN ports allow for maximum internal data transfer speeds, while the four Gigabit WAN ports provide two modes of session-based load balancing as well as failover protection to ensure maximum throughput and reliable Internet connectivity.
The SRX5308 is a high‑performance, SNMP‑manageable firewall router offering 1 Gbps hardware‑accelerated LAN‑to‑WAN throughput, 200,000 concurrent connections, and comprehensive security features such as DoS protection, SPI, URL filtering, and a configurable hardware DMZ port. It provides four Gigabit WAN ports with session‑based load‑balancing and fail‑over, VLAN support for up to 254 VLANs, and both SSL and IPsec VPN capabilities.

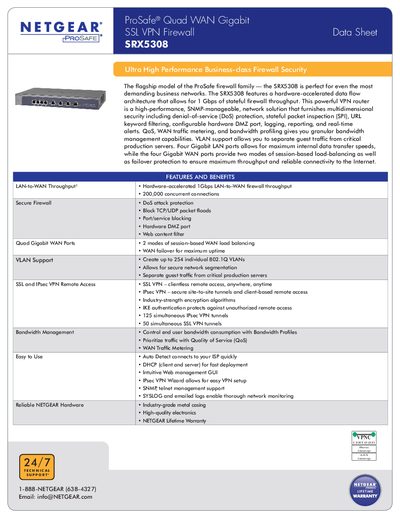

Technical specifications include detailed performance figures (e.g., 924 Mbps LAN‑to‑WAN throughput, 180 Mbps IPsec VPN throughput, 21 Mbps SSL VPN throughput), hardware resources (4 WAN/4 LAN Gigabit RJ45 ports, 64 MB flash, 512 MB RAM), and environmental ratings. The sheet also lists management interfaces, certifications, dimensions, and warranty information (lifetime warranty).
| LAN-to-WAN Throughput | 924 Mbps |
|---|---|
| IPsec VPN (3DES) Throughput | 180 Mbps |
| SSL VPN Throughput | 21 Mbps |
| Maximum Concurrent Connections | 200,000 |
| Maximum Number of VLANs | 254 |
| Dedicated IPsec VPN Tunnels | 125 |
| Dedicated SSL VPN Tunnels | 50 |
| Gigabit RJ45 Ports (WAN/LAN) | 4/4 |
| Flash Memory / RAM | 64 MB / 512 MB |
| Dimensions (W x H x D) | 33 x 4.3 x 20.9 cm |
| Weight | 2.1 kg |
| Operating Temperature | 0° – 45°C |
| Power Input | AC 100‑240 V, 50/60 Hz |
The SRX5308 supports up to 200,000 concurrent connections.
The SSL VPN throughput is rated at 21 Mbps.
NETGEAR provides a lifetime warranty for the SRX5308.
