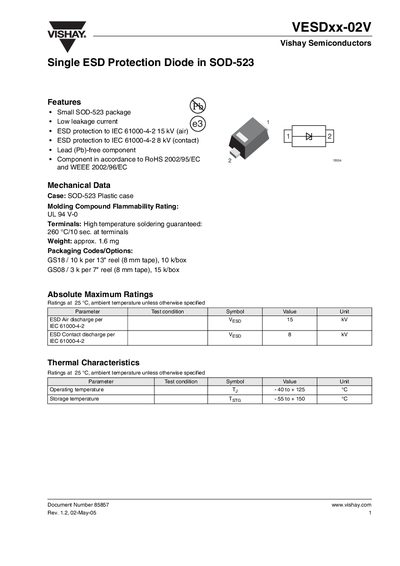

VESDxx-02V is a single ESD protection diode in a small SOD-523 package. It has low leakage current and complies with RoHS standards.
The VESDxx-02V series provides single‑cell ESD protection in a tiny SOD‑523 plastic case. Key features include a low leakage current, lead‑free construction, and compliance with RoHS and WEEE directives. The diode meets IEC 61000‑4‑2 standards with 15 kV air discharge and 8 kV contact discharge ratings.
Mechanical data list a weight of about 1.6 mg, a UL 94 V‑0 flammability rating, and terminals that can withstand 260 °C soldering for 10 seconds. Electrical specifications cover reverse voltage, clamping voltage, capacitance, and peak pulse current across a range of operating and storage temperatures. Packaging options include 10 k reels on 8 mm tape and 3 k reels on 7 mm tape.
| Package | SOD-523 Plastic case |
|---|---|
| Weight | approx. 1.6 mg |
| ESD Air Discharge Rating | 15 kV (IEC 61000‑4‑2) |
| ESD Contact Discharge Rating | 8 kV (IEC 61000‑4‑2) |
| Terminal Soldering Capability | 260 °C for 10 s |
| Flammability Rating | UL 94 V‑0 |
| RoHS Compliance | Lead‑free, RoHS 2002/95/EC |
It meets IEC 61000‑4‑2 with a 15 kV air discharge rating and an 8 kV contact discharge rating.
The diode is supplied in a SOD‑523 plastic case and weighs approximately 1.6 mg.
Yes, it is lead‑free and complies with RoHS 2002/95/EC.
