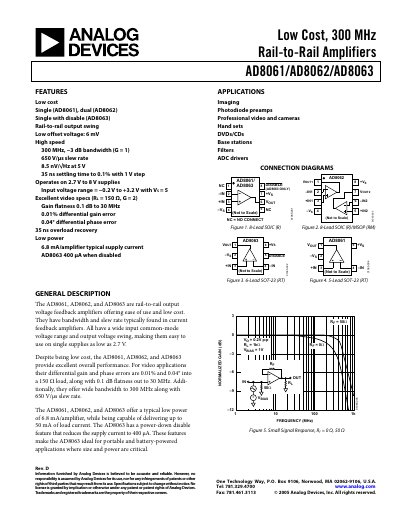

AD8061/AD8062/AD8063 are low-cost, 300 MHz rail-to-rail amplifiers. Features low offset voltage, high output swing, high speed, low power consumption. Mainly used in imaging, photodiode preamplifiers, professional video and cameras, hand sets, DVDs/CDs, base stations, filters, ADC drivers, etc.
The AD8061, AD8062 and AD8063 are low‑cost, rail‑to‑rail output voltage‑feedback amplifiers that operate from a single supply as low as 2.7 V. They provide high‑speed performance with a typical small‑signal bandwidth of 300 MHz and a slew rate up to 650 V/µs, while maintaining low offset voltage (6 mV) and low quiescent current (6.8 mA per amplifier).
These devices are suited for imaging, photodiode pre‑amps, professional video, handheld equipment, DVD/CD players, base stations, filters and ADC drivers. The AD8063 includes a power‑down disable pin that reduces supply current to 0.4 mA, making it ideal for battery‑powered applications.
| Input Offset Voltage – max | 6 mV |
|---|---|
| Supply‑Down Current (AD8063 disabled) | 0.4 mA |
| Maximum Supply Voltage | 8 V |
| Input Common‑Mode Voltage Range | ‑0.2 V to +3.2 V |
When disabled, the AD8063 draws 0.4 mA of supply current.
The maximum supply voltage is 8 V.
The input common‑mode voltage range is from –0.2 V to +3.2 V.
