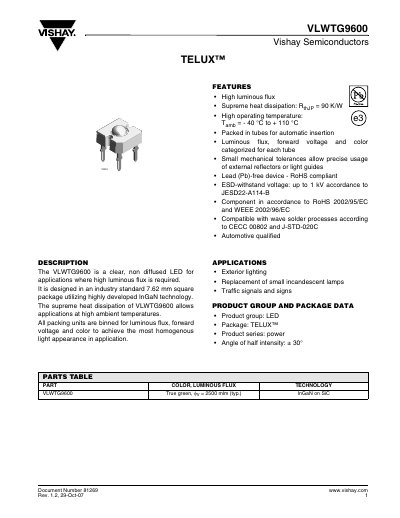

The VLWTG9600 is a clear, non-diffused LED designed for applications where high luminous flux is required. It utilizes highly developed InGaN technology and has supreme heat dissipation, allowing it to be used at high ambient temperatures. All packing units are binned for luminous flux, forward voltage, and color to achieve the most homogenous light appearance in application.
The VLWTG9600 is a clear, non‑diffused LED designed for high luminous flux applications. It uses a 7.62 mm square TELUX™ package and InGaN technology, offering excellent heat dissipation and operation up to 110 °C ambient temperature.
The document provides detailed electrical and optical specifications, package dimensions, marking information, and compliance statements such as RoHS and automotive qualification. It also includes typical characteristic curves and environmental policy details. This manual is written in Chinese.
| Luminous flux (typical) | 2500 mlm |
|---|---|
| Forward voltage (typical) | 4.7 V |
| Reverse voltage | 51 V |
| Power dissipation | 230 mW |
| Junction temperature (max) | 100 °C |
| Operating temperature range | -40 °C to +100 °C |
| Thermal resistance (junction/pin) | 90 K/W |
| Dominant wavelength (typical) | 523 nm |
| RoHS compliance | Lead‑free, RoHS compliant |
| Automotive qualification | Qualified |
Yes, the device is lead‑free and RoHS compliant.
The surge forward current is limited to 0.1 A for a 10 µs pulse.
The LED can operate from –40 °C up to +100 °C ambient temperature.
