The product is HVArc Guard® C0G (NP0) series produced by Vishay Vitramon, using surface-mount, precious metal technology, wet build process MLCC that protect against surface arc-over. The series products have high capacitance, small case size, voltage breakdown voltage is twice that of some competitor products, excellent reliability, high voltage performance and so on. It can be used in DC-to-DC converters, power converters, flyback converters, lighting ballast circuits and other circuits.

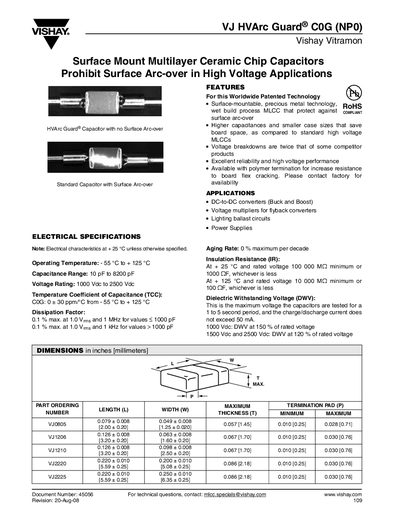

The VJ HVArc Guard C0G (NPO) is a surface‑mount multilayer ceramic capacitor designed to prevent surface arc‑over in high‑voltage applications. It offers higher capacitance in smaller case sizes and twice the voltage breakdown of comparable parts, with optional polymer termination for flex‑crack resistance.
The document lists electrical specifications, typical parameters, ordering codes, packaging quantities, and legal disclaimer information, helping designers select the correct part and understand its performance limits.
| Operating Temperature | -55 °C to +125 °C |
|---|---|
| Capacitance Range | 10 pF to 8200 pF |
| Voltage Rating | 1000 Vdc to 2500 Vdc |
| Temperature Coefficient (COG) | 0 ± 30 ppm/°C (-55 °C to +125 °C) |
| Dissipation Factor | ≤0.1 % at 1 V, 1 MHz (<1000 pF) |
| Aging Rate | 0 % per decade (max) |
| Insulation Resistance (IR) at 25 °C | ≥100 kMΩ (rated voltage) or 1000 MΩ, whichever is less |
| Dielectric Withstanding Voltage (DWV) | 150 % of rated voltage for 1000 Vdc; 120 % for 1500 Vdc/2500 Vdc |
It operates from –55 °C up to +125 °C.
The device is rated for 1000 Vdc to 2500 Vdc.
The aging rate is specified as 0 % maximum per decade.
