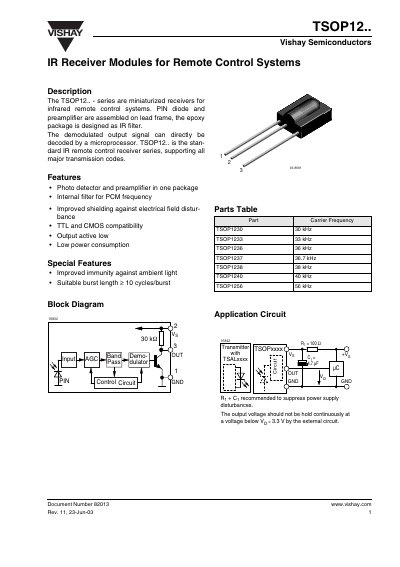

TSOP12.. is Vishay's miniaturized infrared remote control receiver modules, integrating PIN diode and preamplifier, the demodulated output signal can directly be decoded by a microprocessor.
The TSOP12.. series are miniature infrared receiver modules that integrate a photodiode and preamplifier in a single package with an internal epoxy filter. The demodulated output can be directly decoded by a microprocessor and is compatible with TTL and CMOS logic levels.
The document provides absolute maximum ratings, electrical and optical characteristics, typical performance curves, recommended data formats, package dimensions and environmental compliance information.
| Supply Voltage (Pin 2) | 0.3 to +6.0 V |
|---|---|
| Output Voltage (Pin 3) | 0.3 to +6.0 V |
| Supply Current (Pin 2) | 5 mA |
| Output Current (Pin 3) | 5 mA |
| Power Consumption (≤85 °C) | 50 mW |
| Carrier Frequency (TSOP1230) | 30 kHz |
The burst length should be 10 cycles per burst or longer.
The module operates with a supply voltage from 0.3 V up to 6.0 V.
Typical power consumption is 50 mW.
