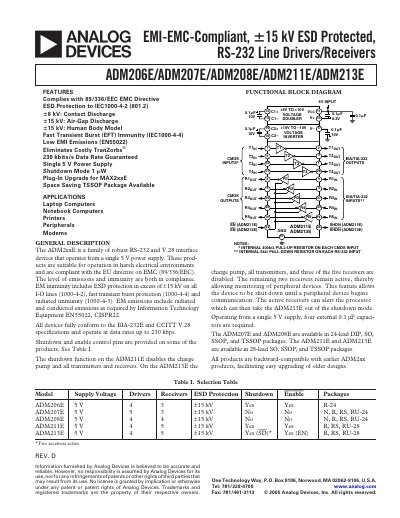

This datasheet provides detailed information about ADM206E/ADM207E/ADM208E/ADM211E/ADM213E products, including product functions, features, specifications, etc.
The ADM206E, ADM207E, ADM208E, ADM211E and ADM213E are ruggedized RS‑232 line drivers and receivers that operate from a single 5 V supply. They include built‑in charge‑pump voltage converters, ESD protection up to ±15 kV, and support data rates up to 230 kbps, making them suitable for harsh electrical environments and portable applications.
The document provides functional block diagrams, detailed pin configurations, absolute maximum ratings, ordering guides, typical performance characteristics, and protection schematics. It also describes enable and shutdown control functions for low‑power operation.
| Operating Voltage Range | 4.5 V – 5.5 V |
|---|---|
| Maximum Data Rate | 230 kbps |
| ESD Protection (I‑O pins) | ±15 kV |
| Input Logic Threshold Low | 0.8 V |
The devices operate from a supply voltage of 4.5 V to 5.5 V.
They support data rates up to 230 kbps.
All I‑O pins are protected against electrostatic discharge of ±15 kV.
The SHDN pin provides shutdown control; it is active high on ADM211E and active low on ADM213E.
