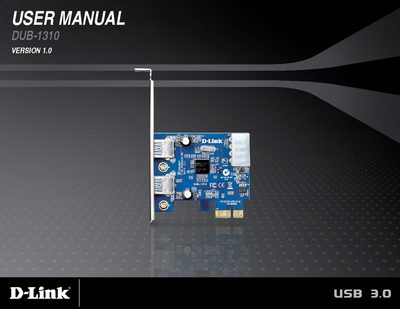

This manual introduces the D-Link DUB-1310 2-Port USB 3.0 PCI Express Card features and characteristics, including product overview, package contents, system requirements, features, hardware overview, installation, etc.
The D-Link DUB-1310 is a 2‑port USB 3.0 PCI Express card that adds high‑speed USB connectivity to a PC. It supports SuperSpeed up to 5 Gbps and is backward compatible with USB 2.0 and USB 1.1 devices.
The manual includes package contents, system requirements, step‑by‑step installation guidance, hardware overview, and a full list of technical specifications such as interface type, power consumption, dimensions, weight, and environmental limits.
| Interface | PCI Express x1 |
|---|---|
| Supplied Power per Port | Maximum 900 mA |
| USB Ports | 2 downstream USB Type‑A (female) |
| Dimensions (L × W × H) | 75.8 × 61.5 × 2.0 mm (2.98 × 2.42 × 0.08 in) |
| Weight | 43 g |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operating Humidity | 0 % to 80 % non‑condensing |
| Maximum Devices | Up to 127 devices (cascading hubs) |
A PC running Windows 7, Vista, or XP SP3 or higher, with an available PCI Express slot (x1, x4, x8, or x16), a 4‑pin 12 V peripheral power connector, and a CD‑ROM drive for the installation CD.
