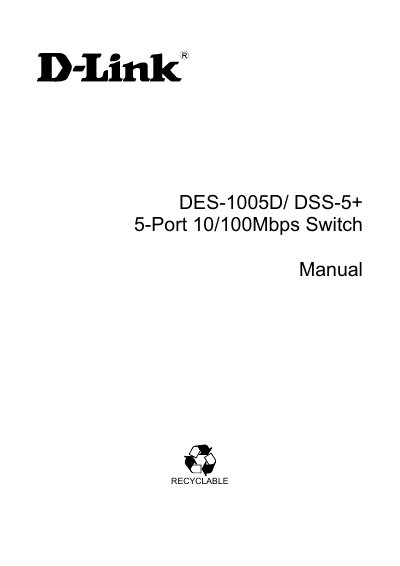

This manual introduces the D-Link DES-1005D/DSS-5+ Ethernet switch, covering Fast Ethernet and switching technology, key features, and unpacking instructions. It guides users through connecting devices, identifying front‑ and rear‑panel components, and mounting the switch.
Technical specifications, RJ‑45 pin assignments, and regulatory information are provided to help installers verify compliance and performance requirements.
| Data Transfer Rate (Ethernet) | 10 Mbps half‑duplex, 20 Mbps full‑duplex |
|---|---|
| Data Transfer Rate (Fast Ethernet) | 100 Mbps half‑duplex, 200 Mbps full‑duplex |
| Power Consumption | 3.5 W (max) |
| Dimensions (W × H × D) | 5.6 × 4.5 × 1.2 inches (142 × 115 × 31 mm) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| DC Input Voltage | 7.5 V / 1 A or 5 V / 1.2 A (regional variants) |
Yes, all ports support automatic MDI/MDI‑X crossover detection.
The switch consumes up to 3.5 W of power.
Fast Ethernet operates at 100 Mbps half‑duplex and 200 Mbps full‑duplex.
