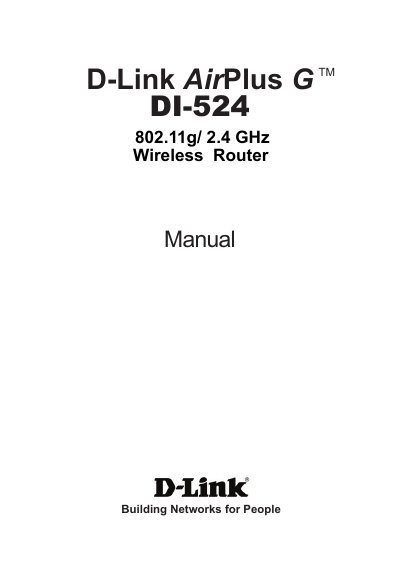

This document provides information about the package contents, introduction, wireless basics, getting started, configuration menu usage, networking basics, troubleshooting, technical specifications, frequently asked questions, technical support contact, warranty and registration information for the D-Link AirPlus G DI-524 TM 2 wireless router.
The D-Link DI-524 is an 802.11g 2.4 GHz wireless router designed for home and small‑office networks, offering up to 108 Mbps data rates and advanced security features such as WPA, WPA‑PSK and 802.1x.
This user manual walks the user through package contents, installation, wireless basics, configuration via the web interface, networking fundamentals, troubleshooting, technical specifications, frequently asked questions, and warranty information.
| Wireless Standard | 802.11g |
|---|---|
| Frequency | 2.4 GHz |
| Maximum Data Rate | 108 Mbps |
| Ethernet Ports | 4×10/100 LAN ports, 1×WAN port |
| Antenna Type | Single detachable reverse SMA |
| Operating Temperature | 3 °F to 104 °F (0 °C to 40 °C) |
| Warranty | 1 year |
Press the Reset button on the router; this restores the router to its original factory default settings.
The router uses a single detachable reverse SMA antenna.
WLAN LED solid means the wireless segment is ready (blinks during data transmission); POWER LED solid shows proper power; LOCAL NETWORK LED solid indicates a computer connection; WAN LED solid indicates WAN connection; STATUS blinking means the router is ready.
