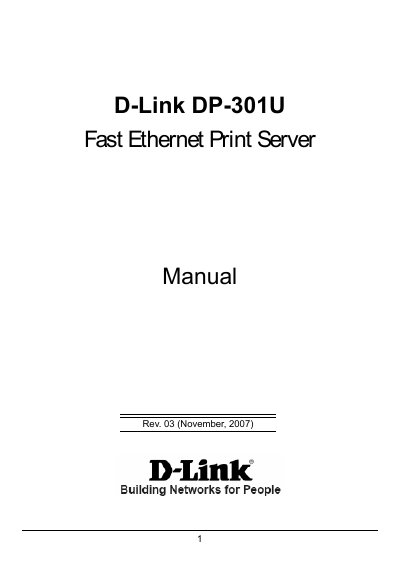

This document is the manual for D-Link DP-301U Fast Ethernet Print Server, which describes the external features, installation and setup, user guide, and printing setup methods for different operating systems.
The DP-301U is a compact Fast Ethernet print server that connects networked printers to Ethernet or Fast Ethernet networks, handling print jobs from workstations and file servers. It supports TCP/IP, NetBEUI, AppleTalk/EtherTalk and provides a web‑based management interface and optional Telnet configuration.
The manual covers package contents, system requirements, hardware installation, network and USB connections, LED indicators, the PS‑Wizard software, web configuration steps, advanced settings, maintenance functions such as firmware upgrade and diagnostics, technical specifications, and a printer compatibility list.
| Printer Port | USB port |
|---|---|
| Network Data Transfer Rate | 10/100 Mbps |
| Network Connector | RJ‑45 |
| Power Supply | External 5V, 2.5A DC |
| Dimensions | 3.54" x 3.19" x 1.57" (90 mm x 81 mm x 40 mm) |
| Weight | approx. 4.27 oz. (121 g) |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
Press and hold the reset button for three seconds until the USB LED lights up, then release the button to restore factory settings.
The device supports TCP/IP, NetBEUI, AppleTalk/EtherTalk, LPR, and SMB protocols.
Access the device’s IP address with a web browser to open the Web Configuration Interface, where settings can be changed.
