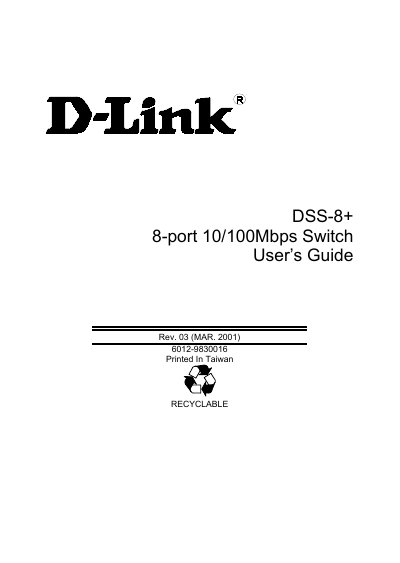

This is a user guide for DSS-8+ 8-port 10/100Mbps Switch. It introduces the features of the product, including Fast Ethernet Technology, Switching Technology, Features, Unpacking, Setup, Identifying External Components, Connecting, Stacking Brackets, RJ-45 Pin Specification, Technical Specifications.
This guide explains how to unpack, install, and configure the D-Link DSS-8+ Ethernet switch. It covers the purpose of the device, its features, front and rear panel descriptions, LED indicators, and step‑by‑step wiring instructions for connecting PCs, hubs, and other network devices.
The document also includes detailed technical specifications such as data transfer rates, port counts, MAC address table size, and environmental requirements, as well as warranty and regulatory information for the product.
| Data Transfer Rate (Ethernet) | 10 Mbps (half duplex), 20 Mbps (full duplex) |
|---|---|
| Data Transfer Rate (Fast Ethernet) | 100 Mbps (half duplex), 200 Mbps (full duplex) |
| Number of Ports | 8 x 10/100 Mbps NWay ports |
| Uplink Port | MDI‑II RJ‑45 shared with port 1 |
| MAC Address Table Size | 16 K entries |
| RAM Buffer | 256 KB |
The DSS-8+ provides eight 10/100 Mbps NWay ports.
Each port can operate up to 200 Mbps in full‑duplex mode.
Yes, the switch can be cascaded with two or more DSS‑8+ units using any port.
The uplink uses an MDI‑II RJ‑45 connector that is shared with port 1.
