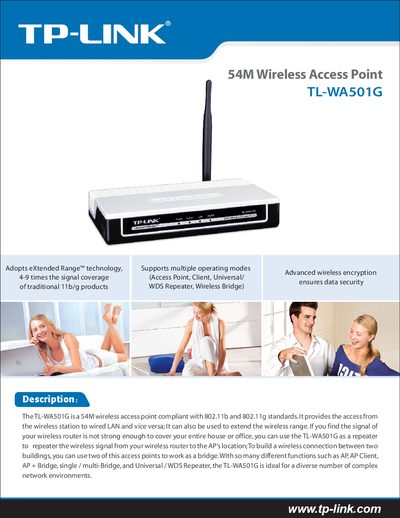

The TL-WA501G is a 54M wireless access point compliant with 802.11b and 802.11g standards. It provides access from the wireless station to wired LAN and vice versa. It can also be used to extend the wireless range. With multiple operating modes and advanced wireless encryption, it is ideal for complex network environments.
The TL-WA501G is a 54 Mbps wireless access point compliant with 802.11b/g standards. It can function as an access point, client, universal/WDS repeater, or wireless bridge, allowing flexible network deployment in homes or offices.\n\nThis manual includes quick setup steps, detailed technical specifications, and information on supported features such as detachable 3 dBi omni‑directional antenna, power‑over‑Ethernet capability, and security options like WEP, WPA/WPA2, and MAC address filtering.
| LAN Port | 10/100 M auto‑sensing |
|---|---|
| Wireless Data Rates (802.11g) | 54/48/36/24/18/12/9/6 Mbps (dynamic) |
| Wireless Data Rates (802.11b) | 11/5.5/2/1 Mbps (dynamic) |
| Frequency Band | 2.4‑2.4835 GHz |
| Max Transmit Power | 17 dBm |
| Antenna | 3 dBi detachable omni‑directional |
| Power Supply | 9 VAC / 0.8 A linear PSU |
| Operating Temperature | 0 °C ~ 40 °C (32 °F ~ 104 °F) |
| Dimensions | 6.2 × 4.3 × 1.3 in. (158 × 110 × 32 mm) |
It supports multiple operating modes including Access Point, Client, Universal/WDS Repeater, Point‑to‑Point, and Point‑to‑Multi‑point.
The device comes with a 3 dBi detachable omni‑directional antenna.
