SFE2000P is a 24-port 10/100 Ethernet switch with PoE. It supports IEEE 802.1Q VLAN, IEEE 802.1X port authentication, Access Control Lists (ACL), DOS Prevention, and MAC-based filtering to secure the network. It also supports the IEEE802.3af standard for PoE, which can provide power for wireless or VoIP deployments. Each port has independent overload and short-circuit protection, as well as LED indicators for power status.
The Linksys SFE2000P is a 24‑port 10/100 Ethernet switch with four 10/100/1000 ports and Power over Ethernet (PoE) support. It offers stacking, redundant power options, dual firmware images, and a range of security and QoS features for reliable voice and video communications.

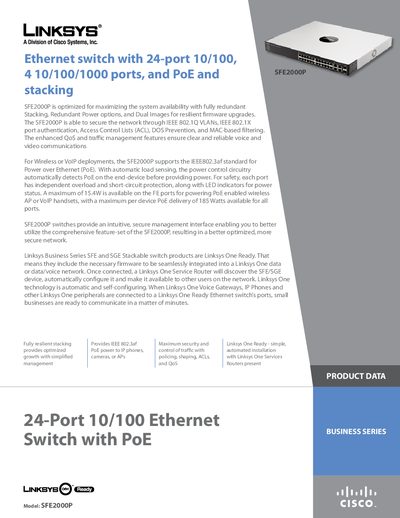

The document provides detailed specifications, including port types, PoE power budget, switching capacity, stacking limits, VLAN support, environmental ratings, and package contents, along with management interfaces such as Web UI, SNMP, and RMON.
| Switching Capacity | Up to 12.8 Gbps non‑blocking |
|---|---|
| Stacking Capacity | Up to 8 units (192 ports) |
| VLAN Support | 256 active VLANs (4096 range) |
| Dimensions | 17.32" x 14.70" x 1.73" (440 x 375 x 44 mm) |
| Weight | 10.89 lb (4.94 kg) |
| Power Input | 48 VDC |
It supports the IEEE 802.3af Power over Ethernet standard.
Up to eight units can be stacked, providing a total of 192 ports.
The switch operates from 32 °F to 104 °F (0 °C to 40 °C).
