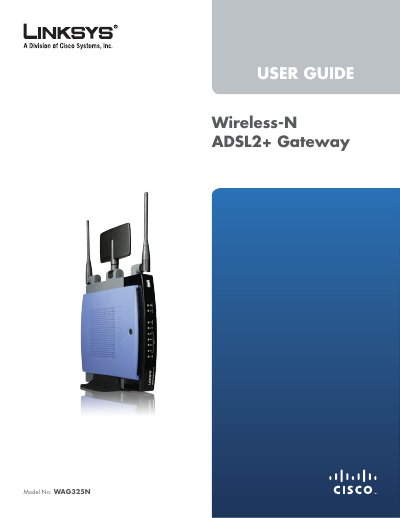

This is a user manual for the Wireless-N ADSL2+ Gateway WAG325N
This guide introduces the Linksys WAG325N Wireless‑N ADSL2+ Gateway, describing its hardware features such as four Ethernet ports, DSL, wireless, and security LEDs, and the back‑panel connectors. It explains the purpose of the device as a combined modem and router for sharing Internet access and resources.
The manual walks the user through installation, basic and advanced configuration via the web‑based utility, security settings, VPN passthrough, and includes a specifications appendix, regulatory information, and a troubleshooting section.
| Model Number | WAG325N |
|---|---|
| Standards | 802.11n, 802.11g, 802.11b, 802.3u, 802.3, g.992.1, g.992.2, g.992.3, g.992.5 |
| Ports | Power, DSL, Ethernet (1‑4) |
| Antennas | 3 non‑detachable |
| Transmit Power | 17 dBm |
| Antenna Gain | 2 dBi |
| Dimensions (W×H×D) | 188 mm × 40 mm × 176 mm |
| Weight | 527 g |
| Power Supply | 12 VDC, 1 A |
| Operating Temperature | 0 °C to 40 °C |
Press and hold the Reset button for about five seconds, or use the Administration > Factory Defaults screen in the web utility.
