This is a wireless network card that supports wireless A, B, G three protocols, the highest transmission speed is 54Mbps

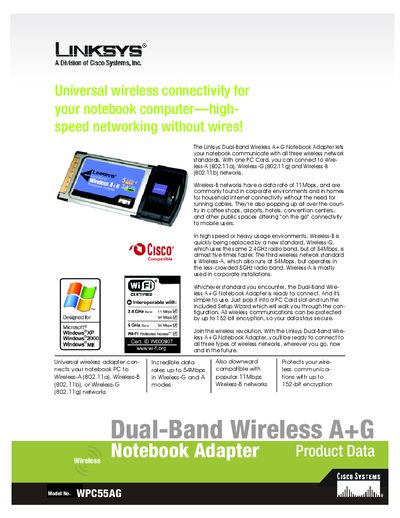

The Linksys WPC55AG Dual‑Band Wireless A+G Notebook Adapter lets a notebook connect to 802.11a, 802.11b, and 802.11g networks using a single CardBus adapter. The manual explains how to install the adapter, run the Setup Wizard, and configure security features such as WPA and 152‑bit WEP.
Technical specifications, minimum system requirements, and certification information are listed, along with dimensions, power consumption, and environmental limits. The guide also includes a quick‑start checklist and troubleshooting tips.
| Standards | IEEE 802.11a, 802.11b, 802.11g |
|---|---|
| Transmit Power | 11 dBm to 17 dBm |
| Modulation | OFDM for a/g; CCK, DQPSK, DBPSK for b |
| Security Features | WEP, LEAP, WPA |
| WEP Key Bits | 64, 128, 152 Bits |
| Dimensions | 4.72" x 0.51" x 2.13" (120 mm x 13 mm x 54 mm) |
| Unit Weight | 1.48 oz (0.04 kg) |
| Power | 3.3V Bus Powered |
| Storage Temperature | -20°C to 85°C |
| Operating Humidity | 10% to 85% non‑condensing |
| Storage Humidity | 5% to 90% non‑condensing |
It supports IEEE 802.11a, 802.11b, and 802.11g standards.
The adapter includes WEP, LEAP, and WPA with up to 152‑bit encryption.
The adapter measures 4.72" x 0.51" x 2.13" and weighs 1.48 oz (0.04 kg).
The transmit power ranges from 11 dBm to 17 dBm.
